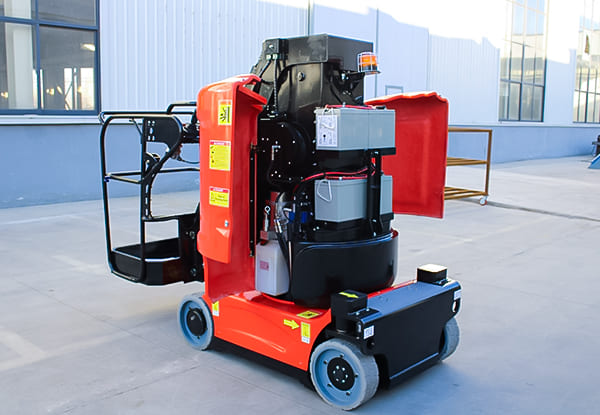

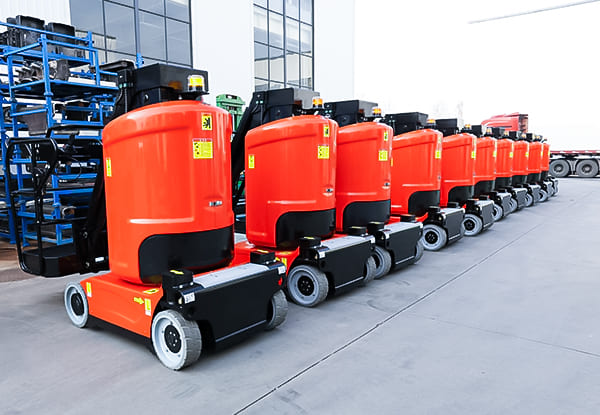

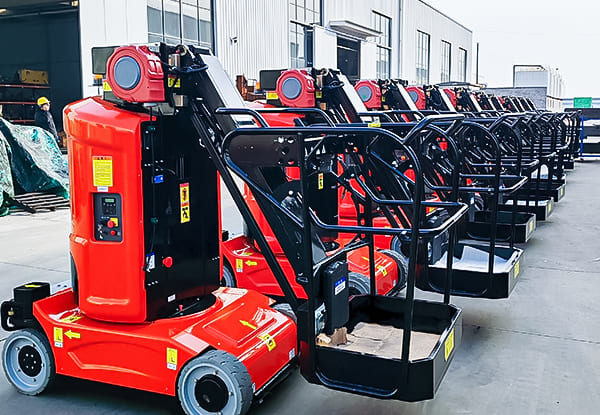

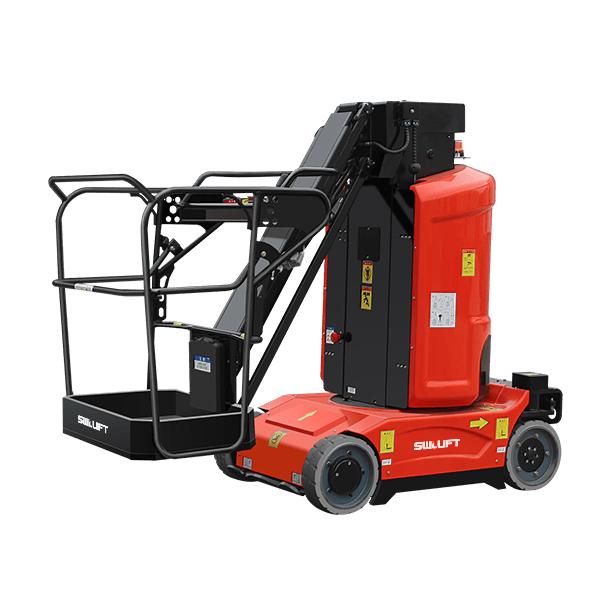

Self-Propelled Mast Vertical Lift

Product

Description

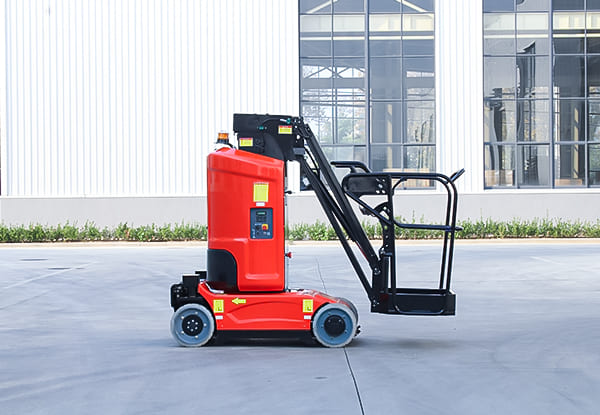

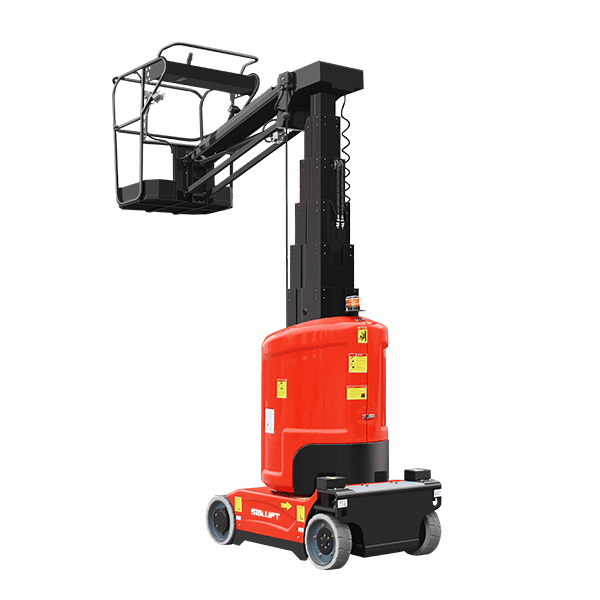

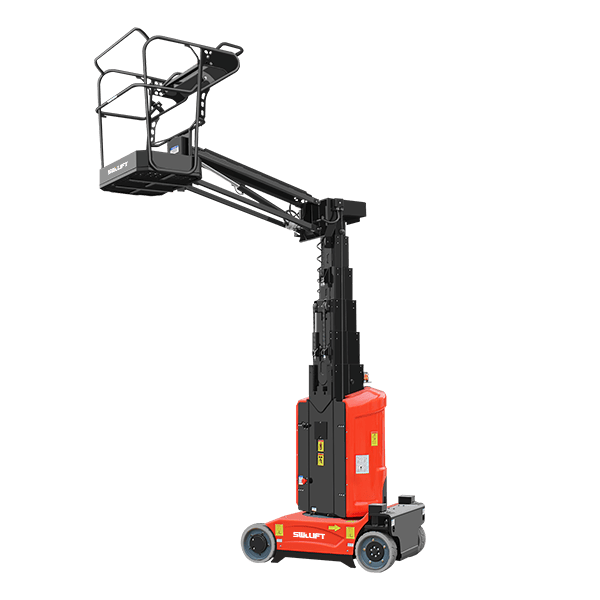

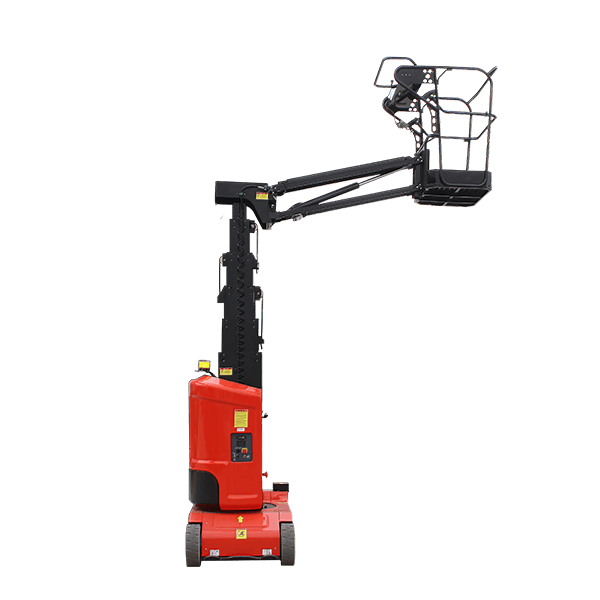

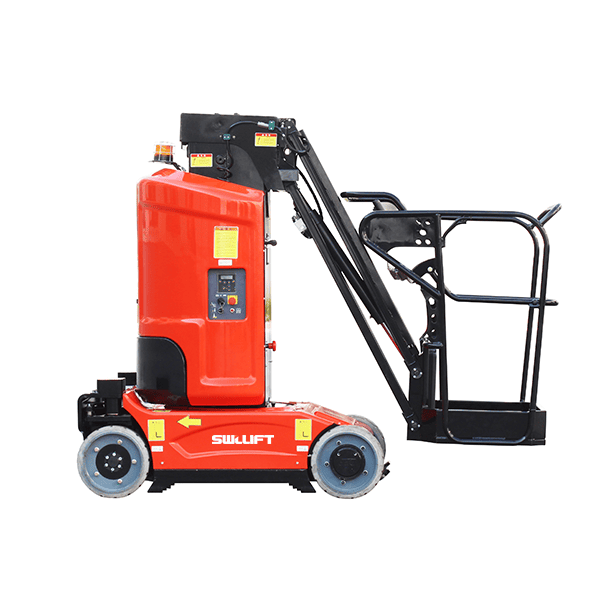

The Self-Propelled Mast Vertical Lift is a special equipment with compact structure, flexible operation, suitable for indoor and outdoor aerial work. The maximum platform height is 2.2 meters, and the width of the whole machine is only 1 meter, which can easily pass through narrow spaces such as elevators and doorways. The equipment is equipped with a multi-angle lifting arm, a 345° rotating platform, an emergency stop and emergency descent system, and has multiple safety guarantees such as overweight alarm, pothole protection, and oil pipe explosion prevention. It is easy to operate and has strong power. It is an ideal choice for aerial maintenance and installation operations in shopping malls, exhibition halls, warehouses, office buildings, etc.

Product

Features

Flexible control

*130° arm lift, easy horizontal crossing
*345° wheel platform rotation, suitable for small spaces
*Steering angle sensing, more sensitive control

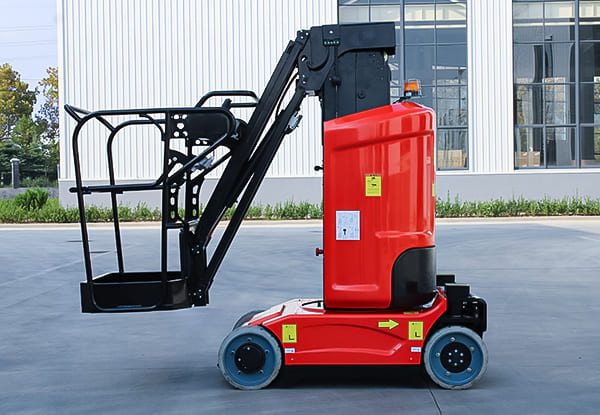

*The whole machine is 1m wide and 1.99m high, easy to pass through elevators and door openings

Safe and reliable

*Emergency stop switch + emergency descent system to ensure safety in emergencies
*Pothole protection to prevent overturning when walking at high positions
*Oil pipe explosion-proof to prevent sudden failure of hydraulic system
*Overweight alarm to eliminate the risk of overload operation

Convenient operation

*Lower control panel + screen fault prompt, simple and intuitive
*Independent emergency descent knob of forearm, reliable in emergency

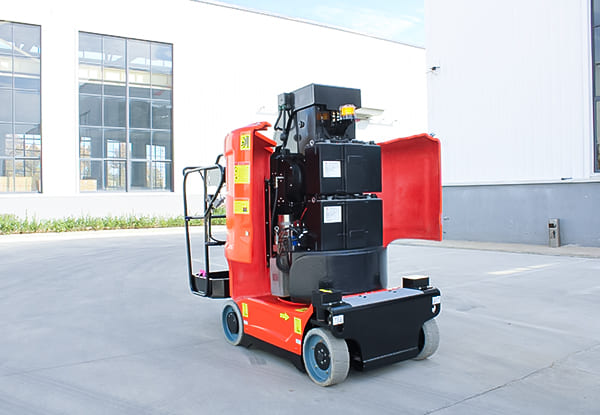

*Standard lifting lugs and forklift holes for easier loading and unloading
*AC drive wheels, maintenance-free and more energy-saving

Lightweight and efficient

*Aluminum platform frame, light and durable
*Compact body, suitable for indoor complex environment operations

Application

Scenarios

product

Parameter

Model	Parameter

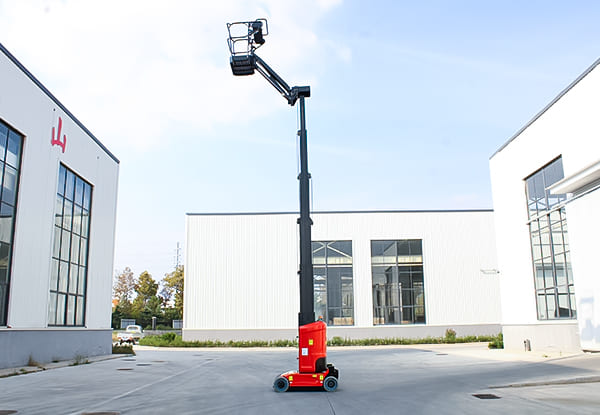

Maximum operating height	11.2 m
Maximum platform height	9.2 m
Maximum horizontal extension	3 m
Height for clearing obstacles	7.89 m
Guardrail height	1.1 m
Machine length	2.53 m
Machine width	1.0 m
Machine height (folded)	1.99 m
Platform size	0.62 m × 0.87 m
Ground clearance (folded)	70 mm
Ground clearance (raised)	19 mm
Wheelbase	1.22 m
Rated load	215 kg
Rated number of people	2 人
Turning radius (inside/outside)	0.23 m / 1.65 m
Turntable rotation angle	345°
Arm movement angle	130°
Driving speed (folded)	4.5 km/h
Driving speed (raised)	0.5 km/h
Ascending/descending speed	42 s / 38 s
Maximum working slope	X: 2.5°，Y: 2.5°
Tire specifications	Φ381 × 127 mm
Drive motor	24V / 0.9 kW
Lifting motor	24V / 3 kW
Battery	24V / 200Ah
Charger	24V / 30A
Machine weight	2950 kg
