Diesel Off-road Scissor Lift

제품

설명

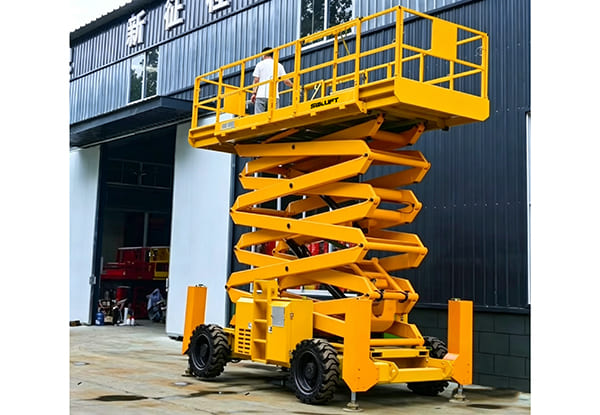

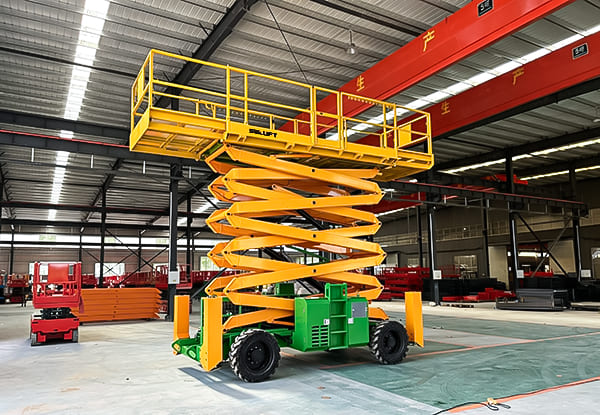

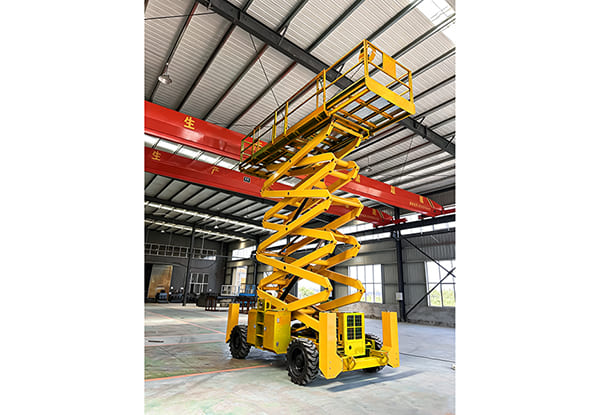

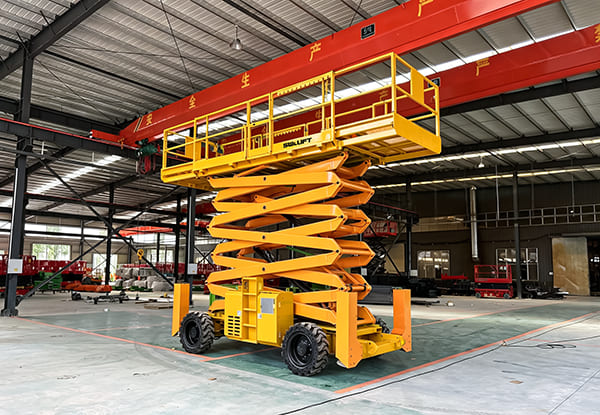

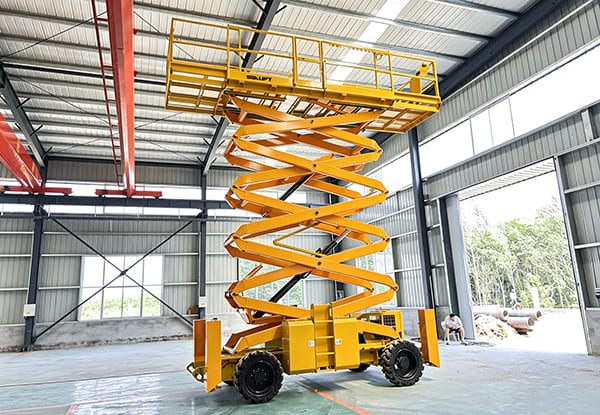

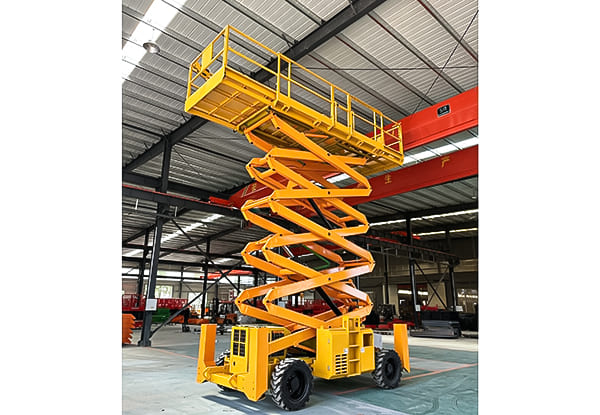

The SW1023RT-12 Diesel off-road scissor lift, developed and manufactured by swllift, is specifically designed for complex terrain and unfinished infrastructure projects, boasting excellent ground adaptability and stable maneuverability. With a maximum working height of 12m and a platform height of 10m, combined with a compact body design (4.88m × 2.30m), it ensures both passability and maneuverability, efficiently adapting to various outdoor construction and high-altitude work scenarios.

This model emphasizes a balance between off-road performance and operational efficiency, maintaining stable operation even in muddy, uneven, and complex road conditions, meeting diverse needs in engineering construction. Leveraging swllift’s mature design and manufacturing capabilities, the SW1023RT-12 excels in structural reliability and practicality, making it an efficient high-altitude solution for infrastructure construction, power maintenance, and outdoor installation operations.

제품

특징

Compact Structure and Optimized Working Space

The SW1023RT-12 Diesel off-road scissor lift features an optimized overall design, resulting in a compact structure and high mobility. Equipped with a two-way extendable platform, it effectively expands the working space, meeting the needs of multiple workers and multiple workstations simultaneously, significantly improving overall construction efficiency.

Robust Off-Road Performance and Stability

The equipment boasts a 40% climbing ability and a full-time floating system, easily handling complex terrain environments such as mud and potholes. Widened wheelbase and track further enhance off-road stability, and combined with a one-button outrigger leveling function, it achieves stable operation under complex ground conditions.

High-Efficiency Operation and Energy-Optimized Design

The SW1023RT-12 has a stronger load-bearing capacity, and its large platform design brings higher work efficiency. Simultaneously, through weight optimization and improved speed ratio, it effectively reduces lifting energy consumption by approximately 30%, achieving both improved performance and energy efficiency.

Convenient Maintenance and Enhanced System Reliability

The equipment adopts an integrated piping layout and a double-sided, double-door design, along with a drawer-type engine compartment, making daily maintenance and troubleshooting more efficient and convenient. Meanwhile, the electrical control system and control panel have been upgraded and optimized to improve signal stability and overall machine reliability.

애플리케이션

시나리오

제품

매개변수

모델	SW1023RT
크기
Maximum working height	12
최대 플랫폼 높이	10
Overall machine length	4.88
Overall machine width	2.3
Overall machine height (with Guardrial unfolded)	2.75
Overall machine height (with Guardrial folded)	2.05
Work platform dimensions (length × width)	3.98×1.83
Platform extension dimensions	front1.5m/back1.2m
Axle spacing	2.85
Ground clearance	360
성능
Maximum number of workers	7
정격 부하	1150
Extended platform rated load	230
Machine travel speed (retired state)	6.1
Machine travel speed (lifted state)	1.1
Ascending/descending time	50/35s
Maximum climbing ability	0.5
Minimum turning radius (inner wheel)	2.16
Minimum turning radius (outer wheel)	5.33
Maximum permissible working angle (forward/backward)	3°
Maximum permissible working angle (lateral, outrigger retracted)	2°
Maximum permissible working angle (forward/backward, outrigger extended)	0.8°
Maximum outrigger leveling angle (forward/backward)	7°
Maximum permissible working angle (lateral)	12°
Drive	4WD,2WS
타이어	33×12-20/ Solid foam-filled
힘
Power source	Kubota D2.9L,Stage 5,36KW
제어 전압	12V DC
연료 탱크 용량	110
Hydraulic system capacity	110
무게
기계 무게	6950
