Diesel off-road scissor lift

Mahsulot

Tavsif

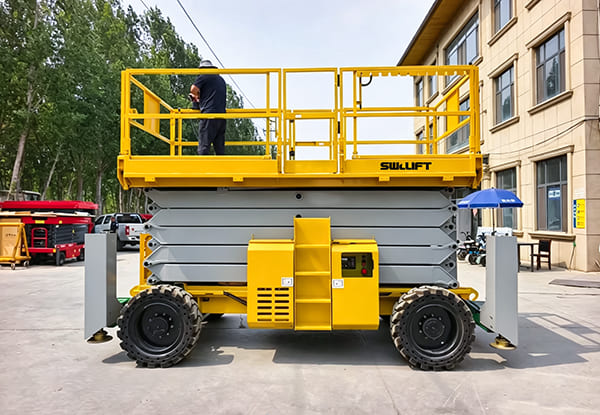

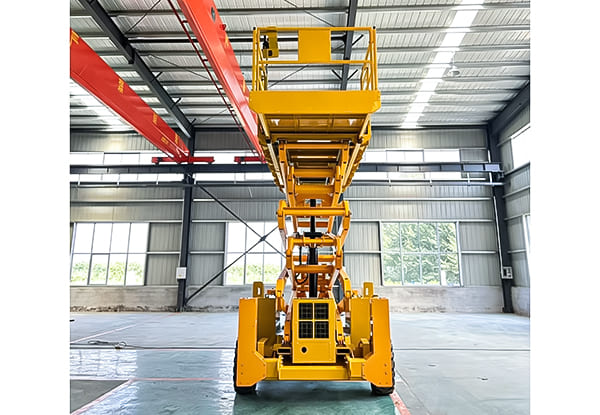

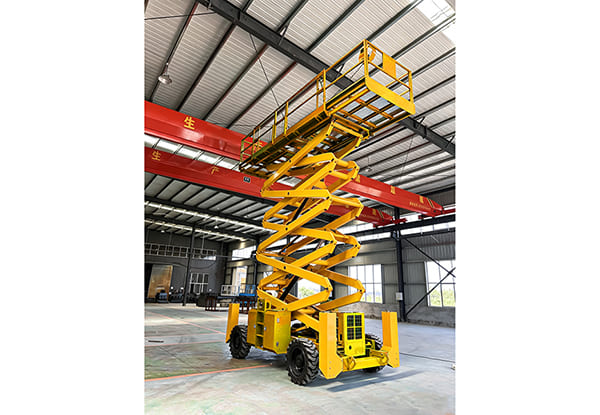

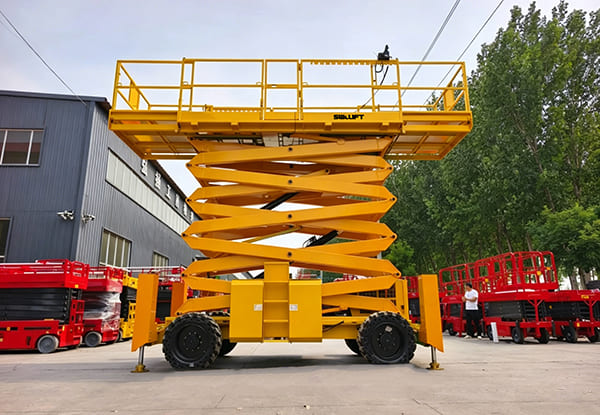

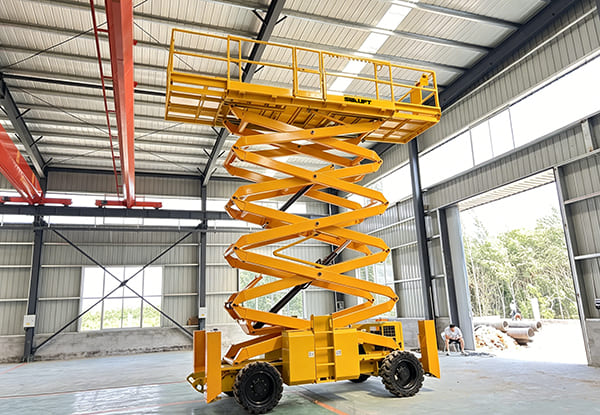

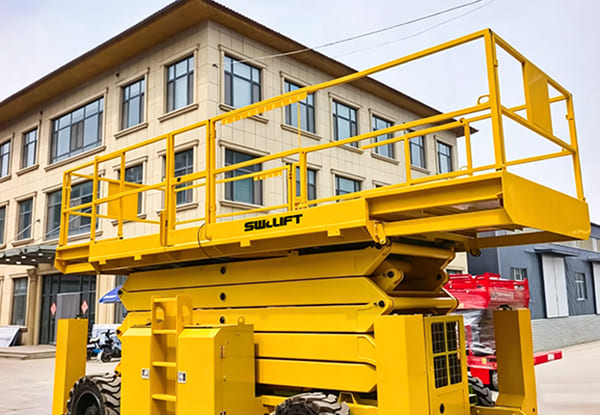

The SW1023RT-15.1 Diesel off-road scissor lift is a high-load-bearing device designed for complex terrain and multi-industry aerial work needs, boasting excellent off-road capability and stable operating performance. Featuring large tires and a high ground clearance, the equipment can move flexibly in various road conditions and supports forward, backward, and turning operations while the platform is raised or lowered, improving work continuity and efficiency. It is widely applicable to various engineering scenarios such as construction, municipal works, power, communications, and ports.

Mahsulot

Xususiyatlari

All-Terrain Adaptability and Complicated Road Condition Passability

The SW1023RT-15.1-Diesel off-road scissor lift boasts excellent all-terrain operation capabilities, operating stably on dirt roads, gravel, mud, and uneven ground. It is an ideal choice for complex scenarios such as construction and agriculture, offering strong adaptability.

High Load Capacity and Powerful Configuration

Equipped with a high-performance drive system and large-size tires, the equipment possesses enhanced load capacity, enabling efficient transport of personnel and tools in harsh working conditions, effectively improving overall work efficiency and construction capabilities.

Flexible Maneuverability and Obstacle Crossing Performance

With its high ground clearance and optimized suspension structure, this equipment can easily traverse obstacles and maneuver flexibly in confined spaces, exhibiting excellent handling and maneuverability to adapt to the changing needs of complex construction sites.

High-efficiency operation and safety control performance

The SW1023RT-15.1 has a maximum working height of 15.1m and a platform height of 13.1m. While increasing the working range, it also has excellent traction and braking performance, which enables the equipment to maintain stable control during movement and lifting, further improving work efficiency and safety.

Ilova

Stsenariylar

mahsulot

Parametr

Hajmi
Maximum working height	15.1
Maksimal platforma balandligi	13.1
Overall machine length	4.88
Overall machine width	2.3
Overall machine height (with Guardrial unfolded)	2.95
Overall machine height (with Guardrial folded)	2.25
Work platform dimensions (length × width)	3.98×1.83
Platform extension dimensions	front1.5m/back1.2m
Axle spacing	2.85
Ground clearance	360
Ishlash
Maximum number of workers	7
Nominal yuk	680
Extended platform rated load	230
Machine travel speed (retired state)	6.1
Machine travel speed (lifted state)	1.1
Ascending/descending time	55/45s
Maximum climbing ability	0.5
Minimum turning radius (inner wheel)	2.16
Minimum turning radius (outer wheel)	5.33
Maximum permissible working angle (forward/backward)	3°
Maximum permissible working angle (lateral, outrigger retracted)	2°
Maximum permissible working angle (forward/backward, outrigger extended)	0.8°
Maximum outrigger leveling angle (forward/backward)	7°
Maximum permissible working angle (lateral)	12°
Drive	4WD,2WS
Shinalar	33×12-20/ Solid foam-filled
Quvvat
Power source	Kubota D2.9L,Stage 5,36KW
Boshqaruv kuchlanishi	12V DC
Yoqilg'i bakining hajmi	110
Hydraulic system capacity	110
Og'irligi
Mashina og'irligi	7230
