Electric off-road scissor lift

מוצר

תיאור

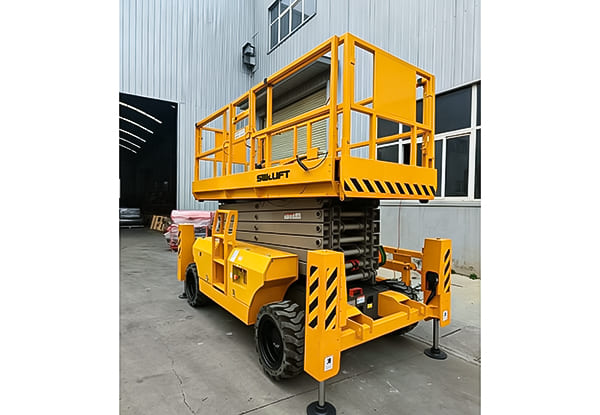

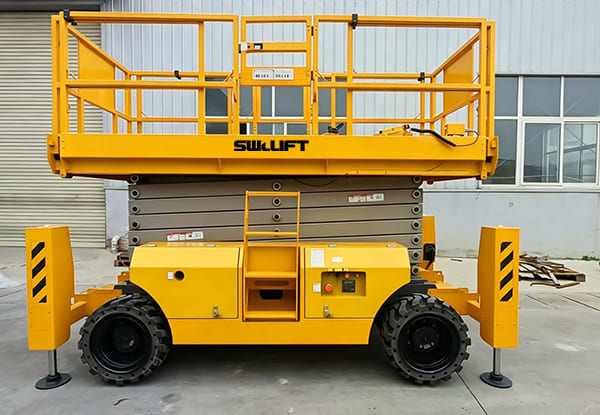

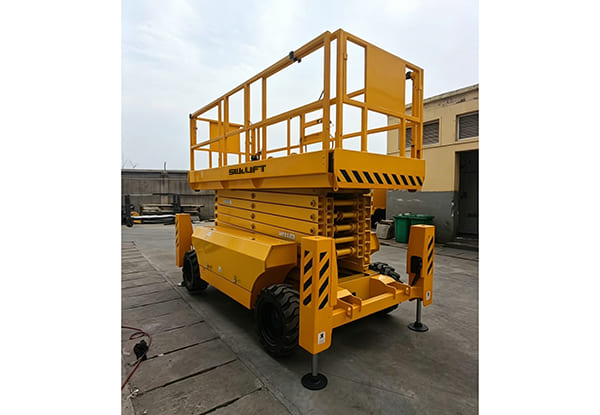

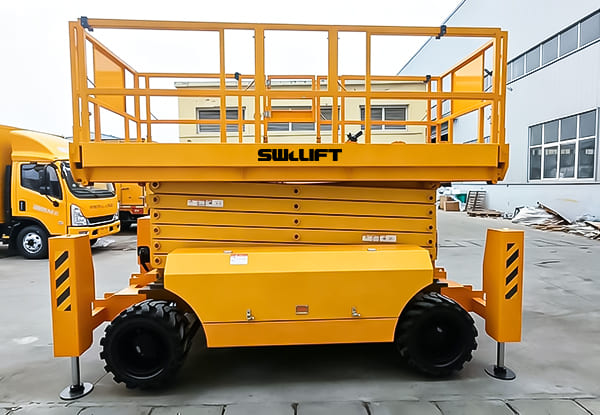

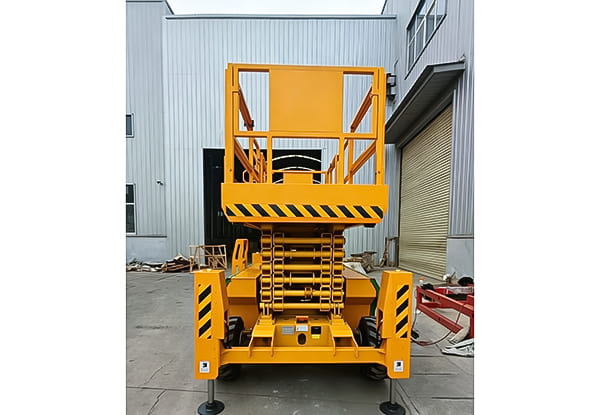

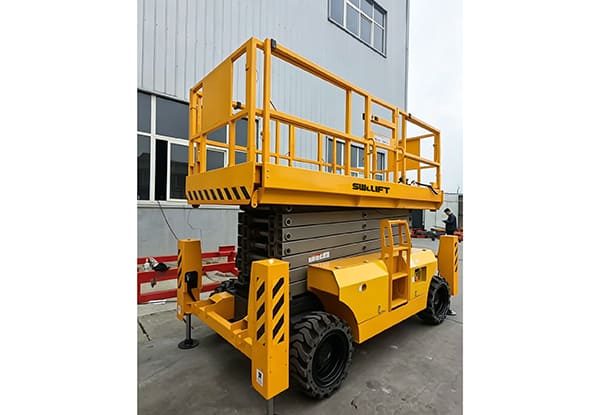

Leveraging swllift’s systematic R&D and manufacturing capabilities in the aerial work platform equipment field, the SWPT1214ERT-Electric off-road scissor lift is built upon mature engineering design and a rigorous quality control system. The equipment achieves a maximum working height of 14m and a platform height of 12m, while also ensuring structural stability and adaptability to complex working conditions. This demonstrates swllift’s comprehensive manufacturing strength in machine integration, core technology application, and reliability verification, providing a stable and efficient solution for outdoor aerial work.

מוצר

מאפיינים

Superior Off-Road Performance and All-Terrain Adaptability

The SWPT1214ERT Electric off-road scissor lift boasts excellent all-terrain driving capabilities. Equipped with off-road tires and a high ground clearance design, it easily handles rugged construction sites, mountainous areas, and complex road conditions. It supports free switching between high-speed two-wheel drive and low-speed four-wheel drive, and can achieve a full-time four-wheel drive mode, providing powerful performance and stable passability while ensuring efficiency.

High-Efficiency Electric Drive System and Environmental Advantages

The equipment adopts a pure electric drive solution, operating quietly and with zero emissions, suitable for work scenarios with high environmental requirements. It features a high-performance AC motor with high efficiency, high torque, and long service life, while a large-capacity battery ensures long-lasting battery life to meet the needs of continuous operation for extended periods.

Intelligent Control and Ease of Operation

The SWPT1214ERT is equipped with a screen-based human-machine interface system, enabling parameter setting, fault diagnosis, data reading and writing, and overall machine operation monitoring, making operation more intuitive and efficient. Meanwhile, the one-button automatic outrigger leveling function greatly simplifies the work preparation process, improving ease of use and safety.

Large Platform Design and Multi-Scenario Application

The equipment features a 14-meter bidirectional extension platform, capable of accommodating multiple workers and tools simultaneously, effectively improving work efficiency and comfort. It is widely applicable to high-voltage transmission line maintenance, mountain base station installation, post-disaster repair, and high-altitude operations on construction sites and in complex terrains, demonstrating strong adaptability to various scenarios.

יישום

תרחישים

מוצר

פָּרָמֶטֶר

מקסימום גובה עבודה	14M
מקסימום גובה פלטפורמה	12M
Minimum platform height	1550mm
עומס מדורג	450 ק"ג
Extended platform safe working load	120kg
Platform extension length	1200mm
Work platform length	2570mm
Work platform width	1390 מ"מ
Overall machine height (with guardrail raised)	2650mm
Overall machine height (with guardrail folded)	2130mm
Overall length	3330mm
Overall width	1830mm
Travel speed (in retracted state)	300mm
Travel speed (lifted state)	6.5Km/h
מנוע הרמה	48V/4.5KW/4.5CC
Rise/fall time	62/42s
Maximum climbing ability	0.3
Maximum working angle	1.5°/ 3°
Drive/Brake	Rear wheel
Walking style	סolid off-road tires
Wheel specifications	26×12-16
סוללת אחסון	8×12V/150Ah
מַטעֵן	48V/30A
מנוע כונן	48V/3.5KW*2
Total weight	3740kg
