Diesel off-road scissor lift

Produkt

Beskrivelse

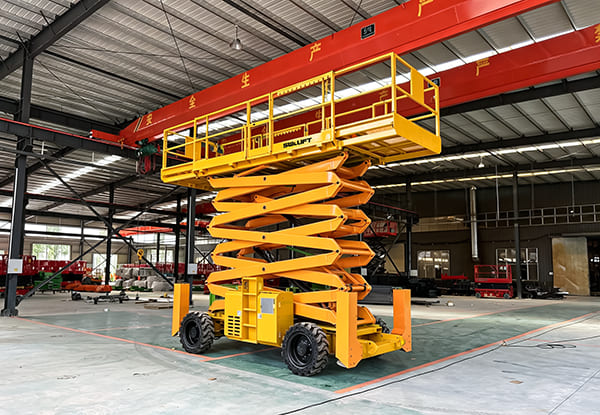

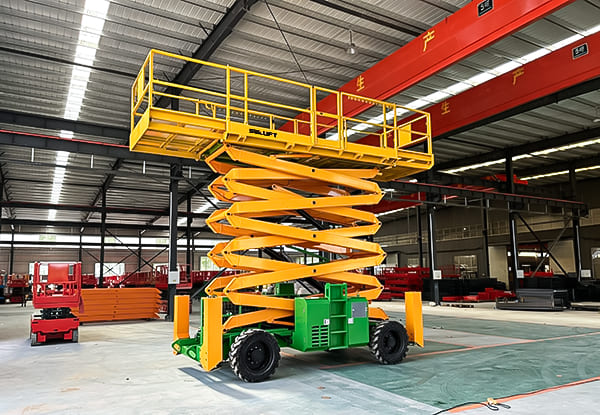

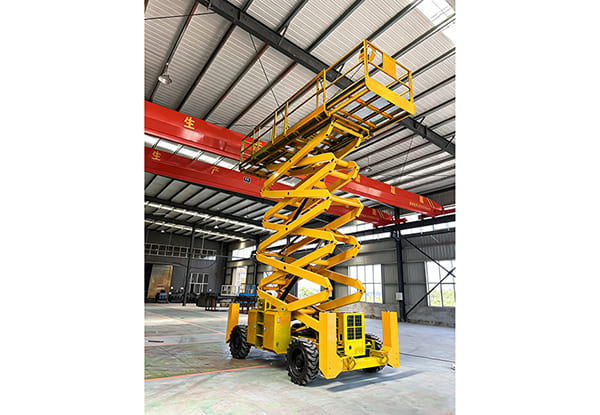

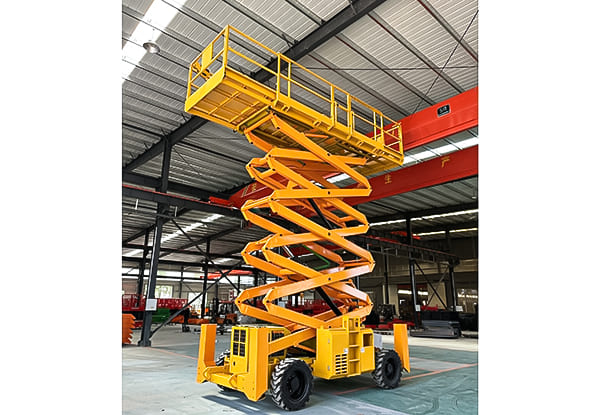

The newly launched SW1023RT-18.2 Diesel off-road scissor lift by swllift features a simple and reliable structural design, smooth and stable operation, high load-bearing capacity, flexible and convenient operation, and easy maintenance. It integrates a comprehensive safety protection system and is suitable for various complex road conditions. The equipment boasts excellent off-road performance, enabling stable operation in the wild and on unpaved roads. It supports single-person operation of driving, lifting, steering, and leveling, achieving continuous and efficient work. The machine is equipped with multiple systems including fault diagnosis, automatic braking, tilt protection, overload alarm, proportional control, four-wheel drive, and rear axle floating/locking. Combined with a bidirectional extension platform and folding guardrail design, it enhances work efficiency while comprehensively ensuring construction safety and reliability.

Produkt

Funktioner

Breaking Traditional Limitations in Off-Road Operations

The SW1023RT-18.2 Diesel off-road scissor lift, developed by swllift, is an upgrade from traditional electric scissor lifts, addressing the limitations of indoor and flat terrain. It adapts to outdoor environments, unfinished infrastructure projects, and complex terrain, achieving broader aerial work coverage.

Higher Working Height and Enhanced Performance

With a maximum working height of 18.2m and a platform height of 16.2m, the equipment boasts a superior working range compared to other off-road scissor lifts in its class. Combined with a high-efficiency power system, it meets higher standards of construction and maintenance requirements.

Compact Design and High Mobility

Maintaining a compact 4.88m × 2.30m structure, the machine maximizes operational capabilities while ensuring excellent maneuverability in complex construction sites and confined spaces.

Professional Solutions for Field Construction

5.swllift has upgraded its off-road scissor lift technology, enabling the SW1023RT-18.2 to achieve a balance between stability, passability, and operational efficiency, providing a more reliable aerial work platform option for power, municipal, construction, and outdoor engineering projects.

Ansøgning

Scenarier

produkt

Parameter

Størrelse
Maximum working height	18.2
Maksimal platformshøjde	16.2
Overall machine length	4.88
Overall machine width	2.3
Overall machine height (with Guardrial unfolded)	3.15
Overall machine height (with Guardrial folded)	2.5
Work platform dimensions (length × width)	3.98×1.83
Platform extension dimensions	front1.5m/back1.2m
Axle spacing	2.85
Ground clearance	360
Ydeevne
Maximum number of workers	4
Nominel belastning	680
Extended platform rated load	230
Machine travel speed (retired state)	6.1
Machine travel speed (lifted state)	1.1
Ascending/descending time	60/50s
Maximum climbing ability	0.4
Minimum turning radius (inner wheel)	2.16
Minimum turning radius (outer wheel)	5.33
Maximum permissible working angle (forward/backward)	3°
Maximum permissible working angle (lateral, outrigger retracted)	2°
Maximum permissible working angle (forward/backward, outrigger extended)	0.8°
Maximum outrigger leveling angle (forward/backward)	7°
Maximum permissible working angle (lateral)	12°
Drive	4WD,2WS
Dæk	33×12-20/ Solid foam-filled
Strøm
Power source	Kubota D2.9L, Stage 5,36KW
Styrespænding	12V DC
Brændstoftank kapacitet	110
Hydraulic system capacity	110
Vægt
Maskinvægt	8020
